Mounting System

---

Product cannot be sold alone. Please order the GSE COMPLETE KIT (incl. flashings, hooks etc).

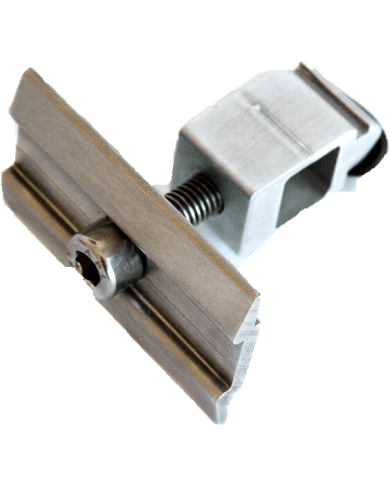

Fix your solar panels with a thickness from 35 to 50 mm with I'M SOLAR middle clamps. The I'M SOLAR mounting system is adaptable for all solar panels.

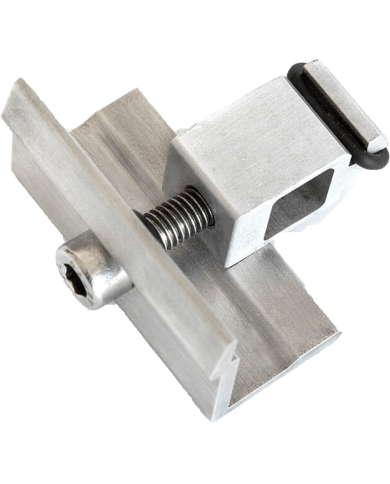

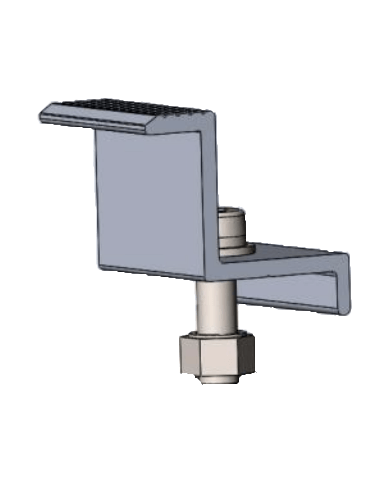

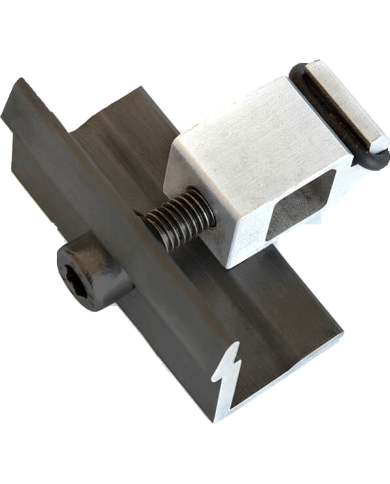

Fix your solar panels with a thickness from 35 to 50 mm with black I'M SOLAR end clamps. The I'M SOLAR mounting system is adaptable for all solar panels.

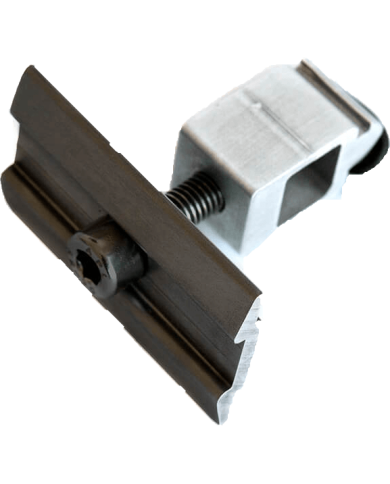

Fix your solar panels with a thickness from 35 to 50 mm with black I'M SOLAR middle clamps. The I'M SOLAR mounting system is adaptable for all solar panels.

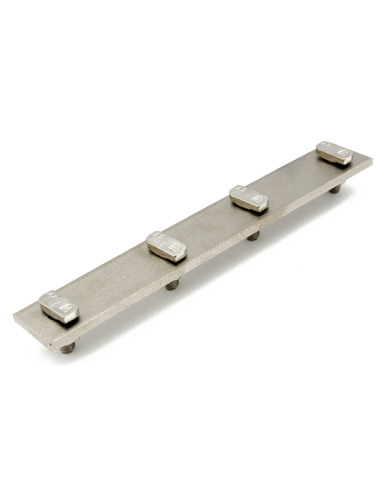

Extend the I'M SOLAR profiles with these rail connectors. Simply slide them directly on to the 2 profiles to make the junction.

Hook for attaching to the glass of the solar panel. The panel must be equipped with a Solrif frame.

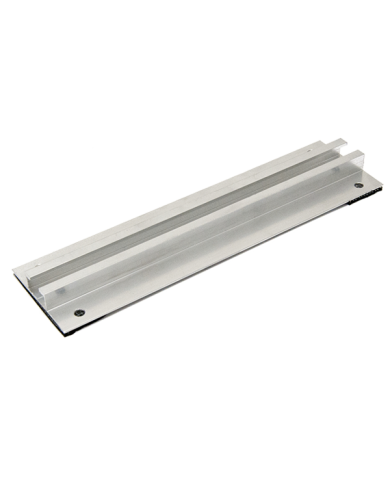

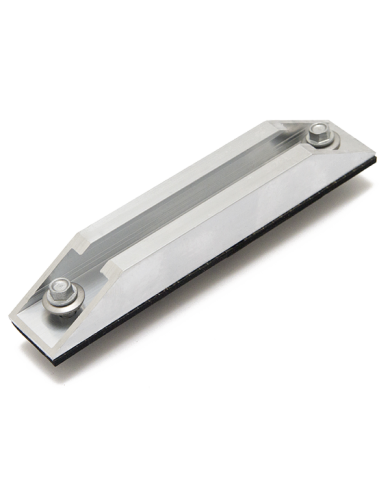

Install your solar panels on steel decks using this I'M SOLAR mounting bracket. Only for horizontal use.

Hanger bolts for installing your solar panels on corrugated iron, fiber-cement, etc. Hanger bolt M12 x 300mm.

Assembly including:2 Stainless-steelsquare nut M54x Stainless steel rounded end screw 6x402x Stainless steel hexagon screw 5x35 stainless steel1x Double clamp1x Double fixing flange

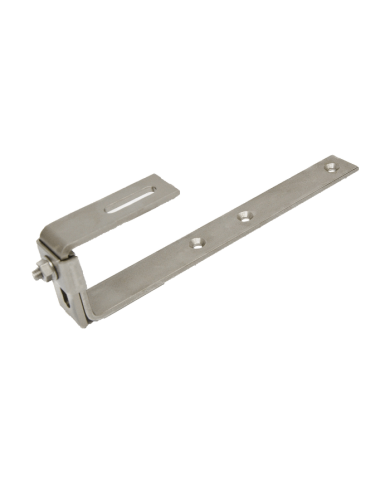

I'M SOLAR hook for the installation of solar panels on roofs with slate tiles.

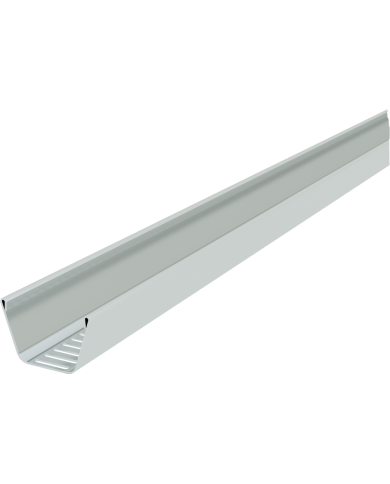

Length 1000mm / Fastening with rivet (supplied) Product cannot be sold alone. Please order the GSE COMPLETE KIT (incl. flashings, hooks etc).

Install your solar panels with the I'M SOLAR fixing rails with 2.2 m length. Simply fasten to the hooks with hammer head nuts. The clamps keep the rails and solar panels on your roof.

We make sure the plate is compatible with your solar panel. Product cannot be sold alone. Please order the GSE COMPLETE KIT (incl. flashings, hooks etc).

Length 1,500 mm / Fastening with rivet (included) Product cannot be sold alone. Please order the GSE COMPLETE KIT (incl. flashings, hooks etc).

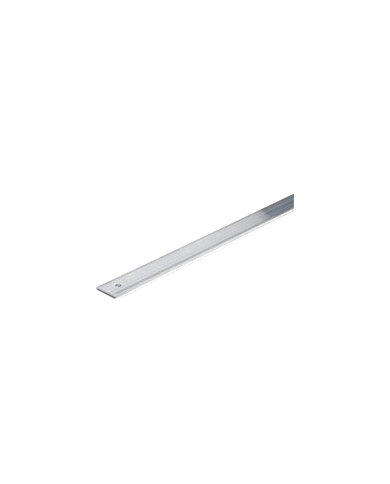

The bar attaches diagonally to the back of 2 I'M SOLAR triangles. Length: 1.75m.

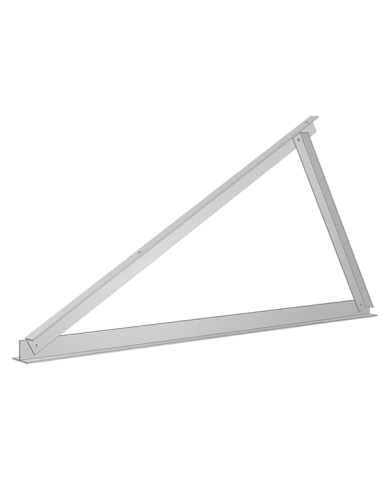

Install your solar panels with I'M SOLAR triangles on a flat roof or on the ground. Attach your profiles directly to these triangles using the pre-drilled holes. Installation in PORTRAIT or LANDSCAPE mode.

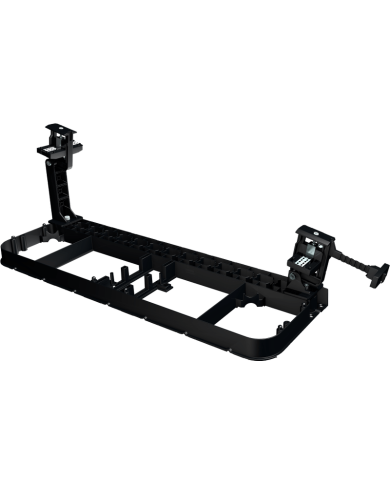

Product can not be purchased alone. Only sold within our EASY ROOF COMPLETE SET (including flashings, hooks etc).

Tar roll to connect your mouting system to the tiles.
