X1 3.6-T-D
Quick start
WIFI Internet monitoring (Key included)
Integrated consumables management
Single-phase inverter
Management excess solar production into the grid

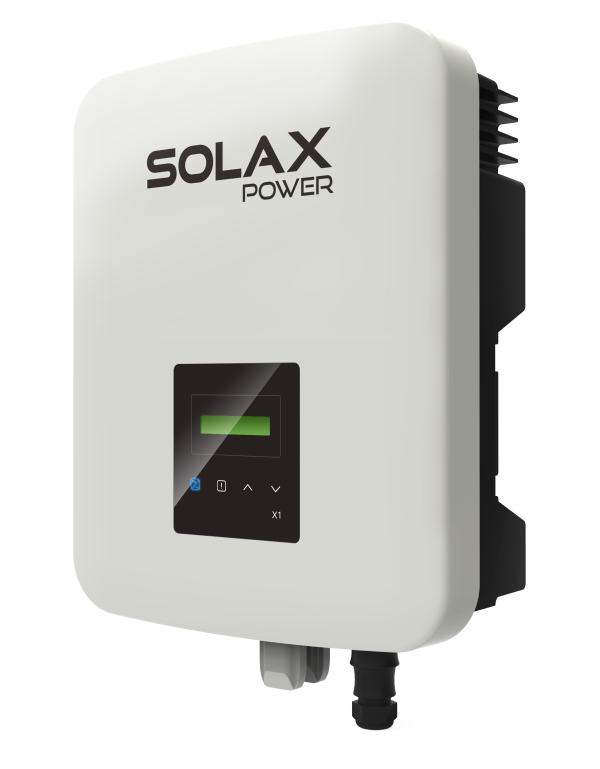

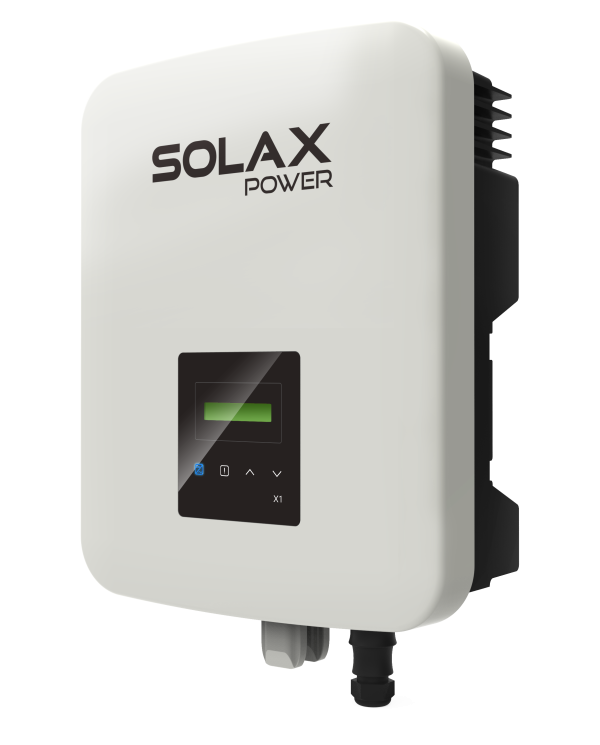

Buy your SolaX Power X1 Boost 3600 inverter at the lowest price - online only. This inverter is ideal for domestic self-consumption. This inverter manages your solar panel production in order not to inject the excess solar production into the grid. The SolaX Power inverter transmits your data for free to the Internet via Wifi. You can analyse its performance online. You can activate the electrical consumables of your home remotely depending on the solar panels' power production or according to a specific schedule. You don't have enough power? This inverter can take from the electrical grid without power limit. Turn yourself into a fully independent electricity producer.
Quick start: The key advantage of the Solax X1 Boost 3600 inverter lies in its low voltage start up. As soon as the voltage starts, your inverter will transform energy to generate electricity. This means a considerable performance gain for your photovoltaic installation.
WIFI Internet monitoring: You are not at home and you want to check that your solar panels are working properly? It's very easy using the Wifi Internet monitoring included in the Solax X1 Boost 3600. Data is transmitted for free onto Solax servers. You can see the real-time performance of your installation on the smartphone app. The ideal solution for assessing the efficiency of your solar panels and batteries. Wifi key is included with this inverter.
Integrated consumables management: The X1 Boost 3600 by Solax is the first inverter ready for smart self-consumption management. This inverter comes with integrated output relay contacts. These relays allow you to activate your home’s consumables remotely depending on the solar panels' power production or according to a set schedule. This inverter optimizes your home's electrical consumption and activates the consumables. No need to be present: you can manage your home's self-consumption remotely.
Excess solar power is not injected into the grid: The X1 Boost 3600 by Solax is a smart inverter that regulates your solar panels' voltage to fit your needs precisely. E.g.: You need 2000 W, your solar panels produce 2500 W. The inverter will regulate the voltage to exactly 2000 W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess into the grid without a reselling contract. To add the SDM230 meter imperatively.
Single-phase inverter: Connect your Solax inverter on your house to a single-phase network. If you wish to work on a three phase, it's very easy: order 3 inverters to insert in each phase. Alternatively, in homes with three phases, you can connect and stay with the Solax single phase (connection on 1 phase).
If you connect a single-phase inverter to a three-phase network, you need a three-phase smart meter.
| Compatible with ALMA SOLAR app | Yes |
| MPPT range : | 70...580V |
| Start voltage: | 100V |
| Max. input current : | 12A / 12A |
| Length x Height x Depth: | 323 x 402 x 119mm |
| Max. efficiency: | 97.6% |
| MPPT Tracker: | 2 |
| Injection: | Monophase |
| Max. input solar panel power: | 5400W |
| Internet connection: | Ethernet / Wifi |
| Inverter brand: | SOLAX POWER |
| Product warranty: | 10 years |
| Place of manufacture: | Asia |
| Inverter type: | Grid inverter |
Compatible with all invertersWifi supervisionHigh voltage battery managementConsumables managementOutput power: 3700 WExcess solar production is not injected into the gridSingle-phase inverter
1 365,00€
Connects in parallel to your electrical circuit and connects directly to your Solax solar inverter to monitor your home consumption and regulate the power of your solar panels. Measures between 5A and 200A per phase for 24mm diameter cables.
Bulb connected via the ALMA SOLAR application Standard E27 socket Power of 9W with possibility of choosing warm/cold white/colors Brightness management Wifi connection Monitoring your own consumption
Control your consumables remotely via the ALMA SOLAR application Automatic color change depending on consumption Monitoring of socket consumption up to 12A Scenario activation based on the states of connected devices, solar production, solar battery status, weather, time, location, brightness* (*depends on a device with sensor)
(4)
(0)
(0)
(0)
(0)
(0) | Läuft ohne Probleme |
| Stefan E. on 05/18/2022 | Einfache Installation des Wechselrichters und Einrichtung der App. Läuft seit 2 Monat en ohne Probleme. |
| onduleur solax x1 boost 3600 |
| PHILIPPE G. on 05/04/2022 | parfait pour mon installation avec 7 panneaux de 450wp montés en string . ne chauffe pas et efficace, onduleur installé dans une armoire électrique ventilée au grenier sans isolation sous toiture |
| onduleur solax x1 boost 3600 |
| Jean c. on 12/11/2022 | depuis plus de 2ans qu'il fonctionne aucun problème, simple et efficace possible de suivre soit par appli ou prog pc avec plus de détail avec les historiques prod et graphiques je recommande |
| à l'utilisation |
| georges B. on 09/29/2021 | fonctionnement simple et efficace mais pas de possibilité de piloter une prise spécialisée (type charge de voiture électrique) pour l'utiliser lorsque les PV produisent. mesures disponibles sur le Cloud : 1 point toutes les 5 mn mai ce n'est qu'un point parmi l'échantillon des 5 mn, ce n'est pas le cumul ou la moyenne des 5 mn, donc valeur approximative qui sous estime la donnée, en particulier pour l'injection. API disponible pour les développeurs, mais ce n'est que les données du Cloud, pas de possibilité d'interroger directement l'onduleur |
