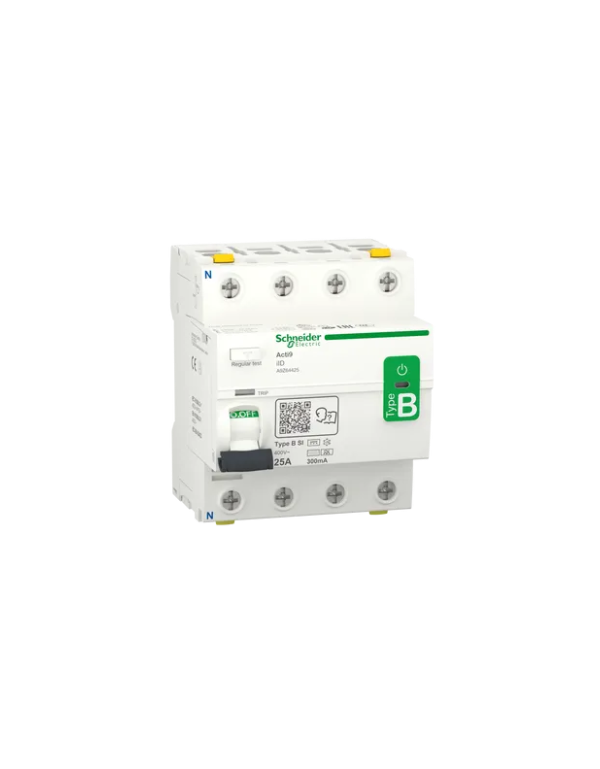

Residual Current Circuit Breaker - 4P - 25A - 300mA - B-SI type
Residual Current Circuit Breaker - 4P - 25A - 300mA - B-SI type

Residual Current Circuit Breaker - 4P - 25A - 300mA - B-SI type

SE-4P-25A-300mA-B-SI-type

Technical Specifications: It's a 4P (four-pole) RCCB with a 25A rated current and 300mA earth leakage sensitivity. Designed for applications like photovoltaic systems, 3P speed drives, and lifts, it provides Type B-SI (Super Immunised) protection.

Safety and Compliance: The Acti9 iID protects against electrical shocks and fire hazards. It automatically disconnects electrical circuits in case of earth faults and is compliant with IEC/EN 61008-2-1 and IEC/EN 62423 standards.

Innovative Features: Features a unique Visitrip indicator for easy identification of faults and a VisiSafe window indicating the full opening of the poles for safe maintenance. It also has a rated breaking and making capacity of 1500A and a conditional short circuit current of 10kA.

Durability and Mounting: Offers high durability with an electrical endurance of 15,000 cycles and mechanical endurance of 20,000 cycles. The RCCB is DIN rail mountable, has a compact size (72mm x 88mm x 79mm, W x H x D), and supports a range of connection options.

A9Z64425

444,60€ tax incl.

Your delivery fees will be defined in your shopping cart according to the quantity and the place of delivery you chose. Free transport start to 6.000€.
Your vat is calculated according to your country. Create your account and the correct vat rate will automatically be adjusted in your shopping cart.

Pay in instalments up to 24 months into your cart
with
More info >

Pay in 3 to 4 instalments at shipment time
with
More info >

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 300mA earth leakage sensitivity and B-SI type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with IEC/EN 61008-2-1 and IEC/EN 62423 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 415g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
