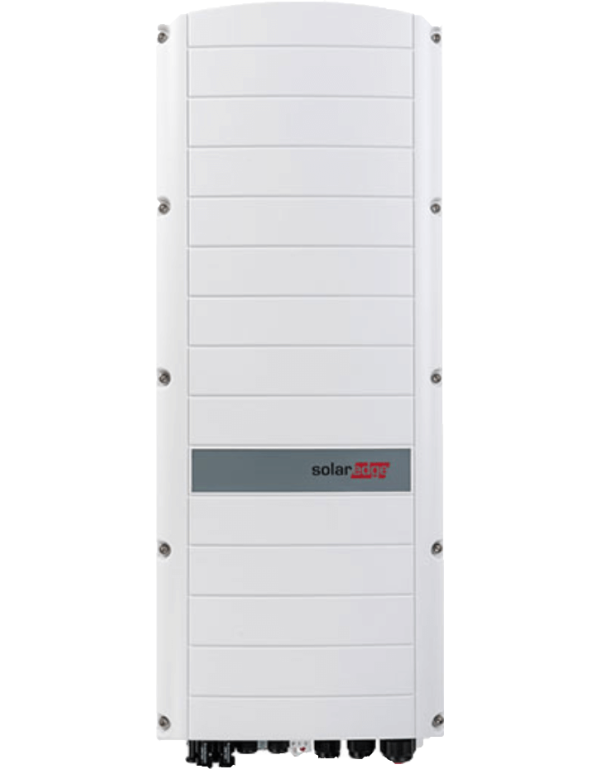

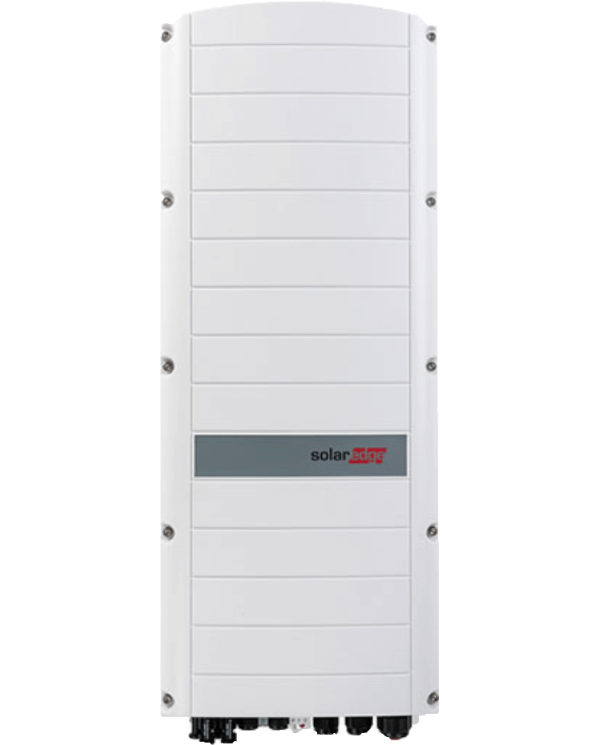

SE10K-RWS48BEN4
WIFI internet monitoring
Integrated battery management low voltage
Operate without a power network
Three phase inverter
Buy SE10K-RWS STOREDGE inverter at the best prices online. The inverter determines the most economic source of electricity for you, between photovoltaic, batteries and the electricity network. It regulates battery charging to maximise their lifespan. The SolarEdge inverter sends your data free over the internet via Wifi. You can analyse it's performance online. If you are absent, it detects and automatically recharges your batteries. In the evening, you use this free energy. If you are afraid of not having enough power, the inverter is capable of taking electricity from the network, without limiting the power. If you have power outages, it is also capable of modulate itself to continue with your supply. You can produce unlimited electricityt.
WIFI Internet monitoring: you are not at home and you want to check that your solar panels are working properly, it's very easy with Wifi internet monitoring included in the SE10K-RWS STOREDGE. Data is sent free on SolarEdge servers. With the Smartphone App, you can see the real-time performance of your installation. The ideal solution for assessing the effeciency of solar panels and batteries.
Integrated battery management low voltage: SE10K-RWS STOREDGE is the first inverter to intelligently manage the charging and discharging of your batteries at 48V. You have the ability to define the recharging source for your battery (e.g. uniquely with solar panels or exclusively from the electricity network). You can also define a recharge time for the batteries (off-peak hours, for example). By default, the SolarEdge inverter prioritises electricity sources in the following order:1 = solar panels, 2 = solar batteries, 3 = networks. This priority can be changed in the settings for the inverter.
Operate without a power network: the SolarEdge Hybrid is an intelligent inverter capable of operating without an electrical network with its BACKUP output. It runs between two sources of electricity: solar panels and solar batteries. Your garden chalet will always have a source of electricity.
Three phase inverter:This inverter is working is Three phase.
| MPPT range : | 750V |
| Max. input current : | 16.5A |
| Length x Height x Depth: | 853 x 316 x 193mm |
| Max. efficiency: | 97.6% |
| MPPT Tracker: | 1 |
| Injection: | Triphase |
| Max. input solar panel power: | 13500W |
| Max. power from the grid: | No limit |
| Battery Type: | Lithium |
| Max. charge / discharge: | 5000W |
| Battery Operating voltage: | 48V |
| Internet connection: | Ethernet / Wifi |
| Inverter brand: | SOLAREDGE |
| Product warranty: | 12 years |
| Place of manufacture: | Europe |
| Inverter type: | Hybrid inverter |
| Marque batterie: | LG |
The Modbus SolarEdge meter is used for photovoltaic supervision, consumption monitoring at home and for monitoring the power grid. The meter measures currents from 50 A to 1,000 A and supports residential and commercial installations. The meter connects to the SolarEdge inverter or gateway control and communication via RS485.
The SolarEdge 100 A current meter measures the current of your home and in the power grid. Connect to the SolarEdge electricity meter.
