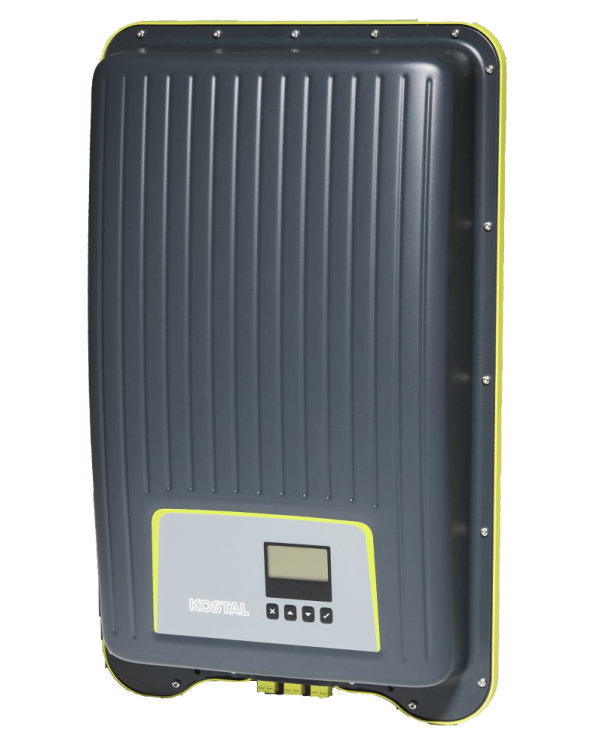

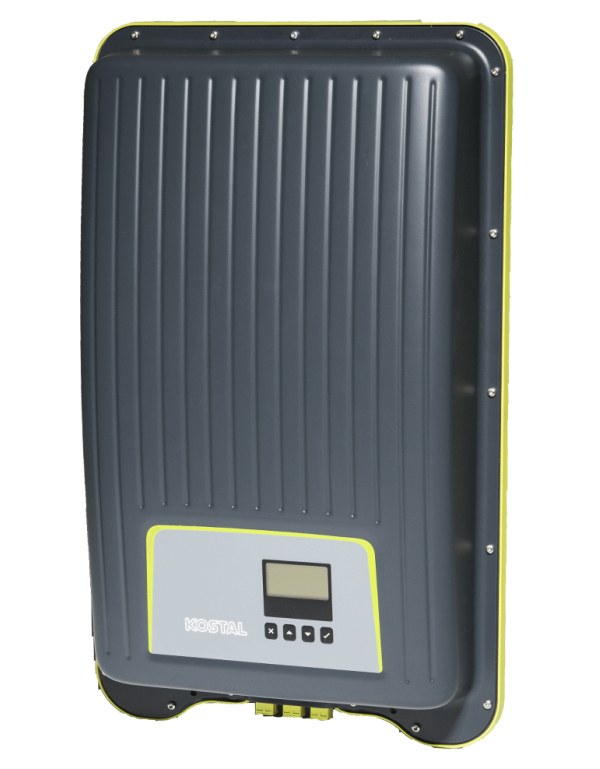

PIKO MP plus 3.0-2
Quick start
Internet monitoring
Integrated battery management
Single-phase inverter
Excess solar power is not injected into the grid
Buy your Kostal Piko MP Plus Hybrid inverter 3.0-2 inverter at the lowest price - online only. This inverter is ideal for domestic self-consumption. This inverter manages your solar panel production in order not to inject the excess solar production into the grid. The Kostal Power inverter transmits your data for free to the Internet. You can analyse its performance online. You can activate the electrical consumables of your home remotely depending on the solar panels' power production or according to a specific schedule. You don't have enough power? This inverter can take from the electrical grid without power limit. Turn yourself into a fully independent electricity producer.
Quick start: The key advantage of the Kostal Piko MP Plus Hybrid inverter 3.0-2 inverter lies in its low voltage start up. As soon as the voltage starts, your inverter will transform energy to generate electricity. This means a considerable performance gain for your photovoltaic installation.
Internet monitoring: You are not at home and you want to check that your solar panels are working properly? It's very easy using the Ethernet Internet monitoring included in the Kostal Piko MP Plus. Data is transmitted for free onto Kostal servers. You can see the real-time performance of your installation on the smartphone app. The ideal solution for assessing the efficiency of your solar panels and batteries.
Integrated battery management: The Kostal Piko makes it possible to manage self-consumption in an intelligent way. Indeed, the inverter integrates high voltage battery management (with BYD or LG). The second tracker is used to realize the charge and discharge. You must buy a battery code on KOSTAL Webshop here: https://shop.kostal-solar-electric.com/en/software/battery-activation-code-energy-manager.html
Excess solar power is not injected into the grid: The Kostal Piko MP Plus is a smart inverter that regulates your solar panels' voltage to fit your needs precisely. E.g.: You need 2000 W, your solar panels produce 2500 W. The inverter will regulate the voltage to exactly 2000 W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess into the grid without a reselling contract.
Single-phase inverter: Connect your Kostal Piko MP Plus inverter on your house to a single-phase network. If you wish to work on a three phase, it's very easy: order 3 inverters to insert in each phase. Alternatively, in homes with three phases, you can connect and stay with the Kostal Hybrid single phase (connection on 1 per phase).
MPPT range : | 115...600V |
Start voltage: | 75V |
Max. input current : | 13A / 13A |
Length x Height x Depth: | 657 x 399 x 227mm |
Max. efficiency: | 97% |
MPPT Tracker: | 2 |
Injection: | Monophase |
Max. input solar panel power: | 4500W |
Battery Type: | Lithium |
Battery voltage range: | 100...500V |
Internet connection: | Ethernet |
Inverter brand: | KOSTAL |
Product warranty: | 5 years |
Place of manufacture: | Europe |
Inverter type: | Hybrid inverter |
Marque batterie: | BYD |
High voltage Lithium Battery90% discharge6.000 cycles or moreLightweight design8.300 Wh Storage Capacity7.650 W Output Power

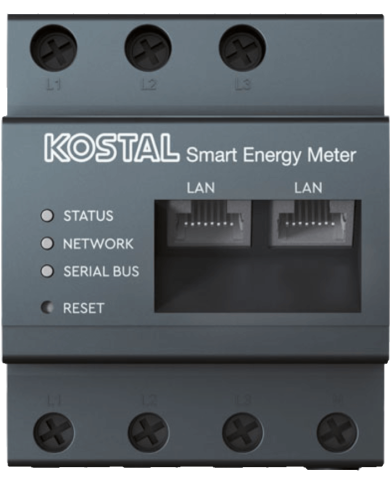

Connects directly to the KOSTAL inverter to monitor your home consumption and regulate the solar panels' power.
