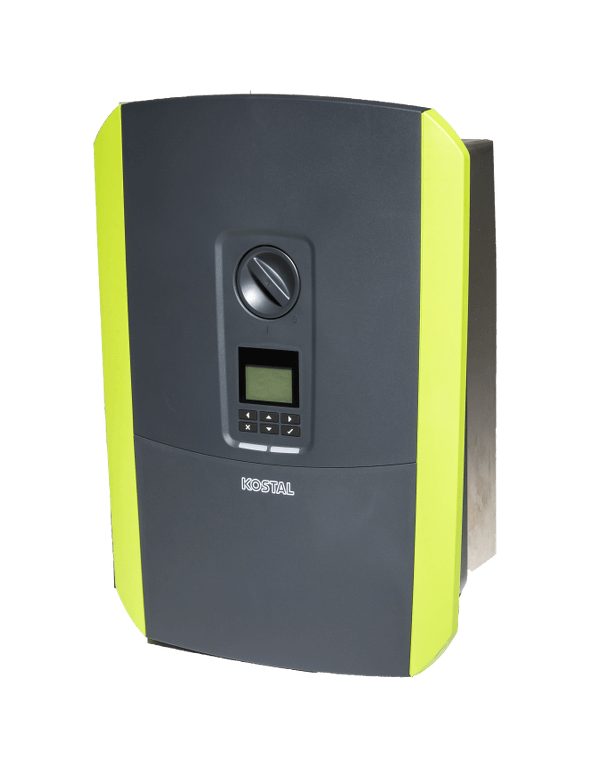

PLENTICORE plus 8.5
Internet monitoring
Integrated high voltage battery management
Three-phase inverter
Excess solar production is not injected into the grid
Buy Kostal PLENTICORE plus 8.5 inverter at the lowest price - online only. This inverter is ideal for domestic self-consumption. This inverter manages your solar panel production in order not to inject the excess solar production into the grid. The Kostal inverter transmits your data for free to the Internet via Ethernet. You can analyse its performance online. You can activate the electrical consumables of your home remotely depending on the solar panels' power production or according to a specific schedule. You don't have enough power? This inverter can take from the electrical grid without power limit. Turn yourself into a fully independent electricity producer.
Internet monitoring via ethernet: You are not at home and you want to check that your solar panels are working properly? It's very easy using the Internet monitoring included in the Kostal PLENTICORE plus 8.5. Data is transmitted for free onto Kostal servers. You can see the real-time performance of your installation on the smartphone app. The ideal solution for assessing the efficiency of your solar panels and batteries.
Integrated high voltage battery management: The Kostal PLENTICORE Plus 8.5 is an inverter that intelligently manages the charging and discharging of your batteries. Use the 3rd input (or MPPT) to connect your battery. It can also work without battery and upgrade the system with storage option. You can define the recharging source for your battery (e.g. with solar panels only or exclusively from the electricity network). You can also define a recharge time for the batteries (off-peak hours for example). By default, the Kostal inverter prioritises electricity sources in the following order:1 = solar panels, 2 = solar batteries, 3 = networks. This priority can be modified in the inverter's settings.
Three-phase inverter: Connect your Kostal Hybrid inverter on your house to a three-phase network.
Excess solar production is not injected into the grid: The Kostal PLENTICORE Plus 8.5 is a smart inverter that regulates your solar panels' voltage to fit your needs precisely. E.g.: You need 2000 W, your solar panels produce 2500 W. The inverter will regulate the voltage to exactly 2000 W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess into the grid without a reselling contract.
MPPT range : | 120...760V |
Start voltage: | 150V |
Max. input current : | 13A / 13A / 13A |
Length x Height x Depth: | 563 x 405 x 233mm |
Max. efficiency: | 97.1% |
MPPT Tracker: | 3 |
Injection: | Triphase |
Max. input solar panel power: | 12750W |
Max. power from the grid: | No limit |
Battery Type: | Lithium |
Max. charge / discharge: | 5850W |
Battery Operating voltage: | 450V |
Battery voltage range: | 120...500V |
Internet connection: | Ethernet |
Inverter brand: | KOSTAL |
Product warranty: | 7 years |
Place of manufacture: | Europe |
Inverter type: | Hybrid inverter |
Marque batterie: | BYD |

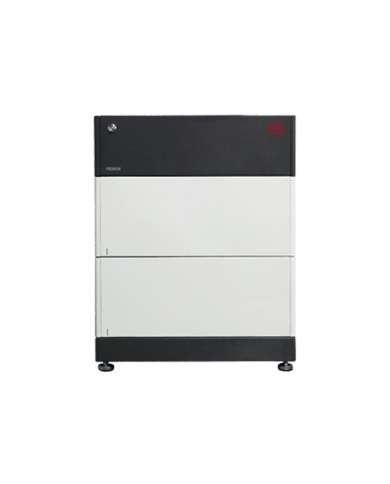

High voltage Lithium Battery90% discharge6.000 cycles or moreLightweight design11.000 Wh Storage Capacity10.200 W Output Power
