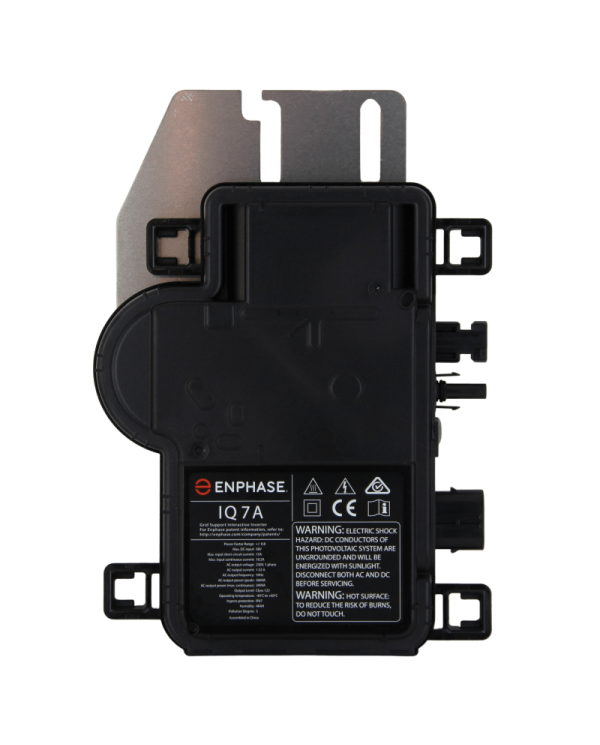

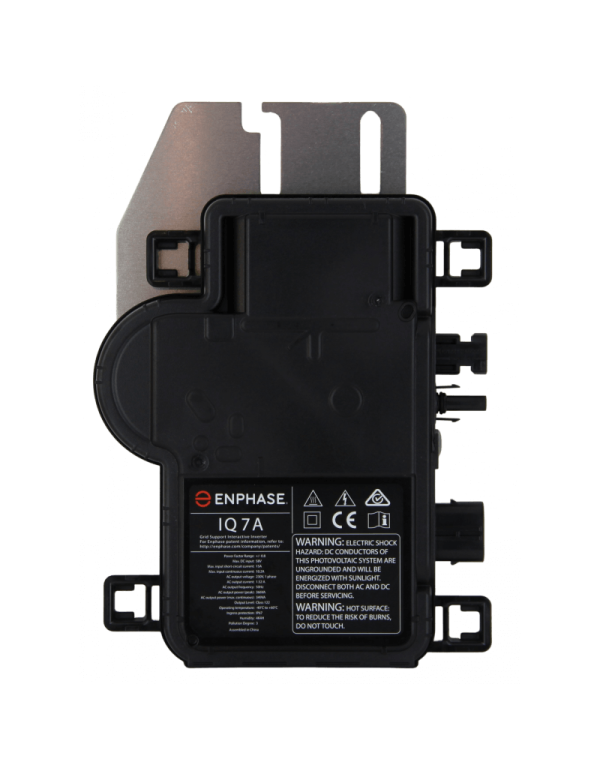

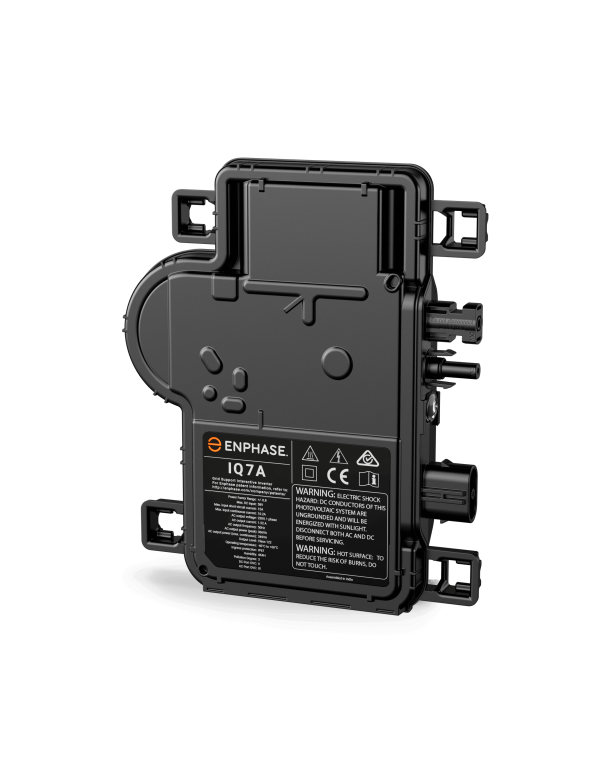

IQ7A-72-M-INT
Microinverter
Single phase
Best perfomance
20 years warranty
Online connection
Microinverters have revolutionised solar technology. Connect your solar panel directly to your ENPHASE IQ7A and you will be able to increase performance and monitor each of your solar panels online. The ENVOY gateway is required in order to activate the ENPHASE microinverter. Without this, the microinverter cannot function. Furthermore, the use of ENPHASE cables is essential to ensure that the product functions properly.
For solar panels will 60, 72 cells and 144 half cells.
Microinverter: The Emphase IQ7A microinverter is installed behind each solar panel, enabling them to work independently. Electricity production is more efficient as each panel is connected to its own microinverter. In addition, if something happens to one of the panels, the others will continue to produce electricity.
Single phase: The EMPHASE IQ7A microinverter is a single phase rectifier.
Best perfomance: The ENPHASE IQ7A microinverter enables you to significantly increase long-term energy production by 7% on average. Solar panels wear differently over time and the microinverter smoothes out these differences.
20 years warranty: The 20 years warranty by Emphase is an important benefit when evaluating profitability or ROI. Such long-term warranties are rare.
Online connection: The EMPHASE IQ7A microinverter operates using the Envoy Communications Gateway. PLC technology is used for communication between the inverter and the Envoy gateway. A smart software called "Enlighten" collects all the data from your installation and monitors energy production in real time as well as the microinverters' performance.
| MPPT range : | 18...58V |
| Max. input current : | 15A |
| Length x Height x Depth: | 212 x 175 x 30.2mm |
| Max. efficiency: | 96.5% |
| MPPT Tracker: | 1 |
| Injection: | Monophase |
| Mini. input solar panel power: | 365 W |
| Max. input solar panel power: | 460W |
| Inverter brand: | ENPHASE |
| Product warranty: | 20 years |
| Place of manufacture: | Asia |
| Inverter type: | Micro-inverter |
The next-generation Envoy-S Metered provides energy usage insights, remote update capabilities and load management, enabling a more cost-effective and reliable solar installation while adding significant value for system owners. "Metered" version. Including 2 portals with Envoy-S Metered.
365,85€
The connectors are located 2m apart from eachother in portrait mode. The quantity you select refers to the number of connectors. The connectors are already mounted on the cable. Of course this number is linked to the number of Enphase micro-inverters you have ordered. This solution is ready to use.
The connectors are located 1.3m apart from eachother in portrait mode. The quantity you select refers to the number of connectors. The connectors are already mounted on the cable. Of course this number is linked to the number of Enphase micro-inverters you have ordered. This solution is ready to use.
(7)
(0)
(0)
(0)
(0)
(0) | Enphase Micro-inverter IQ7A |
| Jan B. on 02/02/2023 | I am using microinverters from 2019. I've had no issues with them so far. There was a problem with the software but enphase support solved it very quickly |
| Livré dans les temps |
| Tendance Natura T. on 12/22/2022 | Très bonne emballage très satisfait |
| ***** |
| Günther L. on 12/07/2022 | problemlose installation, einwandfreie Funktion |
| Micro onduleurs |
| Jean Pierre H. on 09/14/2022 | Parfait |
| --- |
| ulr h. on 07/28/2022 | noch nicht in Betrieb genommen |
| Solider Wechselrichter für skalierbare Systeme |
| Uwe M. on 02/16/2022 | Startet bereits ab 2 W Generatorleistung, läuft bei meiner Installation ca. 1/2h nach Sonnenaufgang an (Pultdach 16 Grad Neigung, Richtung Südwest). Ich speise jeden WR mit je zwei Modulen I'M Solar 270P. Damit nutze ich die maximale Modulleistung nicht ganz aus, aber erfülle damit auch gleichzeitig die Reduzierung auf < 70% der Peak-Leistung. Ausserdem waren die Module relativ günstig im Vergleich zum Preis des WR. Aktuell in den Wintermonaten erreiche ich die Startspannung problemlos. Für die Sommerzeit muss diese Lösung noch getestet werden (Temperaturkoeffizient). |
| - |
| Michael P. on 12/30/2021 | - |
