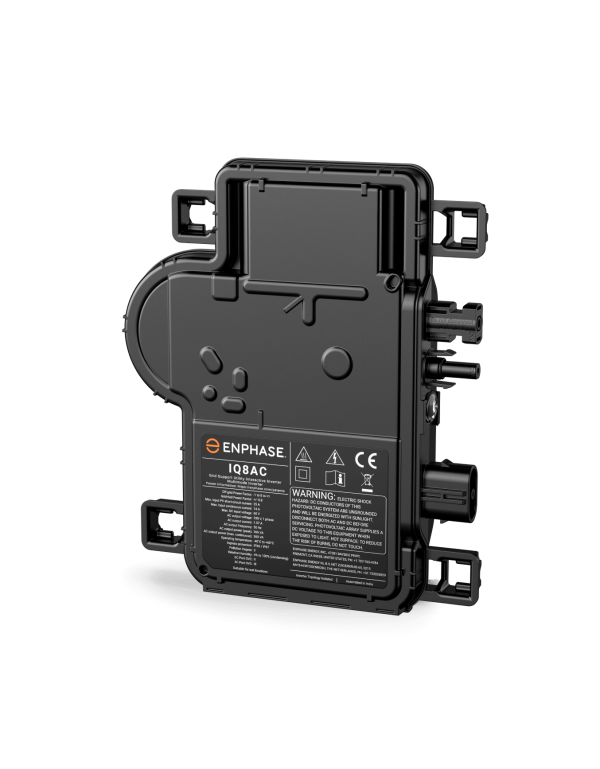

IQ8AC-72-M-INT
Microinverter
Single phase
Best perfomance
25 years warranty
Online connection
Microinverters have revolutionised solar technology. Connect your solar panel directly to your ENPHASE IQ8AC and you will be able to increase performance and monitor each of your solar panels online. The ENVOY gateway is required in order to activate the ENPHASE microinverter. Without this, the microinverter cannot function. In addition, the use of ENPHASE cables is essential to ensure correct product operation.
For solar panels will 54, 60, 72 cells and 108, 120, 144 half cells.
Microinverter: The Emphase IQ8AC microinverter is installed behind each solar panel, enabling them to work independently. Electricity production is more efficient as each panel is connected to its own microinverter. In addition, if something happens to one of the panels, the others will continue to produce electricity.
Single phase: The EMPHASE IQ8AC microinverter is a single phase rectifier.
Best perfomance: The ENPHASE IQ8AC microinverter enables you to significantly increase long-term energy production by 7% on average. Solar panels wear differently over time and the microinverter smoothes out these differences.
25 years warranty: Enphase's 25-year warranty is a significant advantage when calculating your profit or return on investment. Few inverters can offer such performance over a longer period. It is imperative that a Gateway be installed for the warranty to be applicable by Enphase.
Online connection: The EMPHASE IQ8AC microinverter operates using the Envoy Communications Gateway. PLC technology is used for communication between the inverter and the Envoy gateway. A smart software called "Enlighten" collects all the data from your installation and monitors energy production in real time as well as the microinverters' performance.
| MPPT range : | 18...60V |
| Start voltage: | 22V |
| Max. input current : | 12A |
| Length x Height x Depth: | 212 x 175 x 30.2mm |
| Max. efficiency: | 96.5% |
| MPPT Tracker: | 1 |
| Injection: | Monophase |
| Power: | 366W |
| Max. input solar panel power: | 480W |
| Inverter brand: | ENPHASE |
| Product warranty: | 25 years |
| Place of manufacture: | Asia |
| Inverter type: | Micro-inverter |

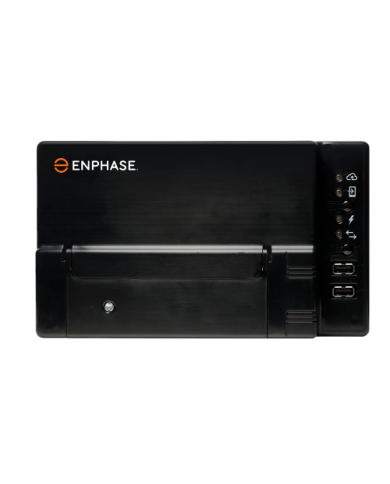

The next-generation Envoy-S Metered provides energy usage insights, remote update capabilities and load management, enabling a more cost-effective and reliable solar installation while adding significant value for system owners. "Metered" version. Including 2 portals with Envoy-S Metered.
The connectors are located 2m apart from eachother in portrait mode. The quantity you select refers to the number of connectors. The connectors are already mounted on the cable. Of course this number is linked to the number of Enphase micro-inverters you have ordered. This solution is ready to use.
The connectors are located 1.3m apart from eachother in portrait mode. The quantity you select refers to the number of connectors. The connectors are already mounted on the cable. Of course this number is linked to the number of Enphase micro-inverters you have ordered. This solution is ready to use.
