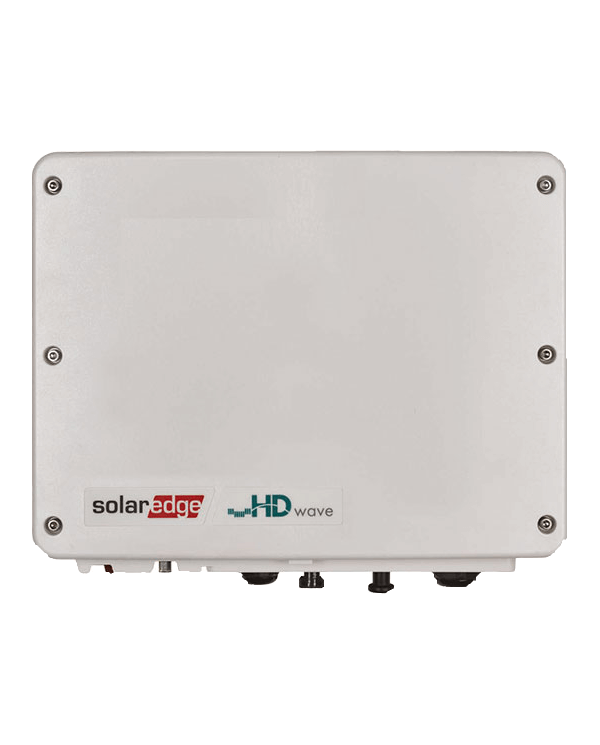

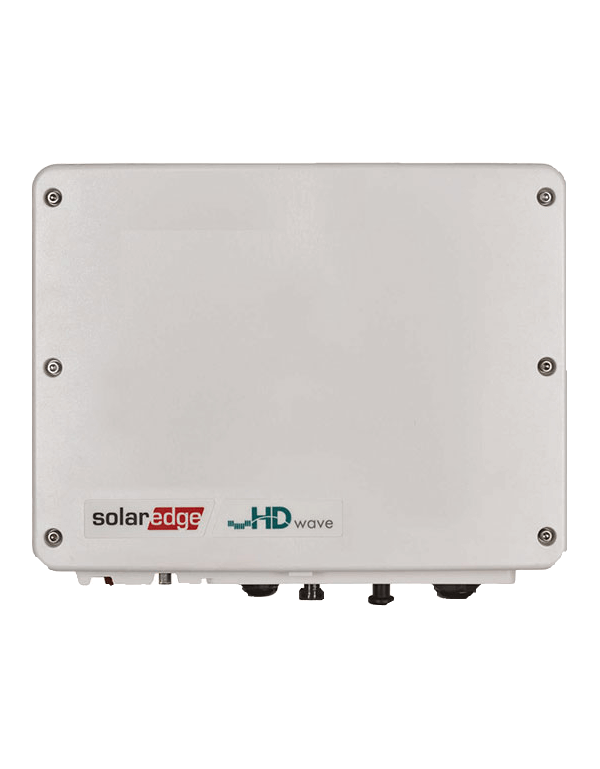

The SOLAR-EDGE SE2200H inverters offer the highest output on the market. Moreover, you can improve the performance of each solar panel to reach maximum productivity (a 10% increase) by combining your SOLAR-EDGE inverters with optimisers. The connection is made via BLUETOOTH.
SOLAR-EDGE guarantees an output of 99% for 12 years. Attractive and easy to install, this inverter is definitely the inverter that you need. Internet monitoring through optimisers is included.There is no need to add a Webbox or communication cards. You only have to connect it.
Output raised to 99%: The SOLAR-EDGE SE2200H inverter combines a sophisticated digital control with efficient conversion architecture in a single step in order to reach a higher output and unparalleled reliability.
Light-weight and easy to install: The SOLAR-EDGE inverter for America is delivered with an integrated CC cutter, while the inverter for Europe can be equipped with a detachable cable grommet to help organise the wiring. Both are sufficiently light-weight to be installed by one person on the supplied bracket.
Web-connectivity: WIFI: The inverter is fitted with a receiver for monitoring data. It collects the data for each photovoltaic unit from the power optimisers. This data is then transmitted via WIFI and is freely accessible on the SolarEdge monitoring homepage. You can analyse the performance, identify functionality problems and repair them.
Functionality with optimisers: The SOLAREDGE inverter inevitably works with an optimiser, improving the production of your installation by almost 10%. The optimiser regulates its impedance in order to make the panels independent of one another. If one of the panels is defective, the performance of the others isn't lessened.
Single-phased inverter: SOLAR-EDGE SE2200H functions with single-phased inverter.
|Max. input current :||6.5A|
|Length x Height x Depth:||280 x 370 x 142mm|
|MPPT Tracker :||1|
|Mini. input solar panel power:||1800W|
|Max. input solar panel power:||2600W|
|Internet connection:||Ethernet / Wifi|
|Product warranty:||12 years|
|Place of manufacture:||Asia|
|Inverter type:||Grid inverter|
The Modbus SolarEdge meter is used for photovoltaic supervision, consumption monitoring home and the electrical grid. The meter measures currents from 50A to 1000A and supports residential and commercial installations. The meter connects to the SolarEdge inverter or gateway control and communication via RS485.
The SolarEdge Smart Energy Management solutions allow increasing the self-consumption of a site. One method used for this purpose is controlling the usage (consumption) of loads using Device Control products. Power management up to 2.5kW.
Heater controller which adjusts the power supplied to heater based on available power of your photovoltaic panels (up to 3 kW)
Connects your SolarEdge inverter to Internet wireless.
The SolarEdge switch with Meter diverts a photovoltaic power to an electrical appliance (load) according to pre-configured schedules.
