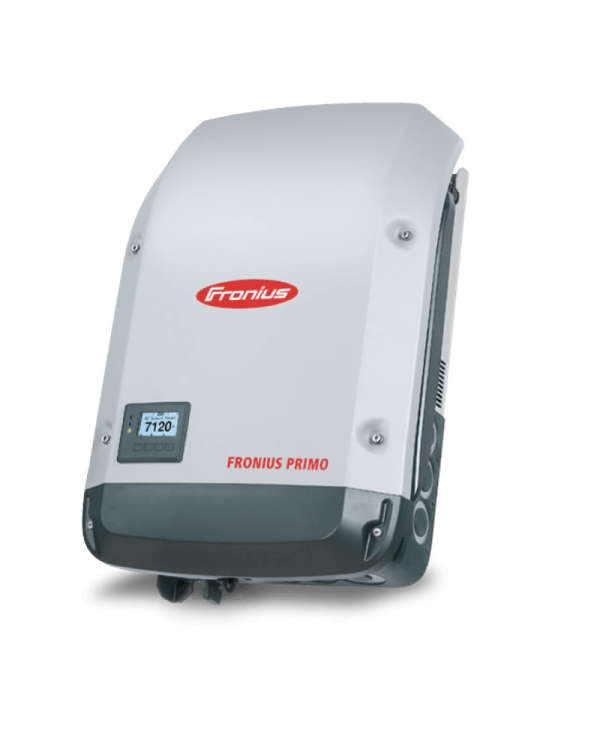

Buy your Fronius inverter Primo 3.6-1 at the best prices online. This inverter is ideal for domestic self-consumption. This inverter manages your solar panel production in order not to inject the excess solar production into the grid. The Fronius inverter sends your data free over the internet via Wifi. You can analyse it's performance online.You can remotely activate the electrical consumables of your home based on solar panels power or a specific schedule. You haven't enough power, this inverter is able to take from the electrical grid without power limit. You are electricity producer.
Quick start:the attraction of the Fronius inverter Primo 3.6-1 is its low voltage start up. As soon as the voltage starts, your inverter will transform energy to generate electricity. Performance gain on your photovoltaic installation.
Datalogger and Wifi included:The inverter is equipped with the Datalogger and the Wifi card. Fronius' Smart Grid Ready solution enables communication inverter with energy suppliers in order to adjust its injection power in the electricity grid and avoid any cuts. This futuristic solution is a step forward in the management of power grids. The inverter provides data such as power or voltage, enabling energy suppliers to assess network conditions.
Management integrated with plugs: The Fronius inverter Primo 3.6-1 is the first inverter who manage your self-consumption smartly. Indeed this inverter integrates output relay contacts. These relays allow you to activate your remote plug regarding solar power available or a chosen time your consumables of your home. This inverter optimizes your electrical consumption of your home and activates them. No need to be present, you manage remotely the self-consumption of your home.
None injection solar excess: The Fronius inverter Primo 3.6-1 is a smart inverter that regulate your solar panels voltage to your strictly need. Eg, you have a need of 2000W, your solar panels produce 2500W. The inverter will regulate the voltage to have exactly 2000W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess without contract.
<Single phase inverter: connect your Fronius inverter Primo 3.6-1 on your house to a single phase network. If you wish to work on a three phase, it's very easy: you order 3 inverters to insert in each phase. Alternatively, in homes with three phases, you can connect and stay with the Fronius single phase (connection on 2 phases). On these 2 phases, you connect the appliances with the highest electricity consumption in your home.
Fronius smart meter 100 A single-phase to monitor the consumption of your home and adjust the production of the inverter. This meter communicates with your Fronius inverter and avoids the injection of surplus from your inverter into the power grid.
In order to ensure sufficient heat dissipation and leave space, observe the recommended distances. Ensuring sufficient heat dissipation, you will avoid the inverter loses its power because of too high a temperature.
You will respect the recommended distances from walls, other inverters or other objects. If several inverters are installed in an area subject to high ambient temperatures, the distances between the inverters must be increased and a sufficient supply of fresh air must be ensured.
At the inverter side, you will find a rotary button, please set on position 0. You are assured that inverter will not operate during the installation period. Start by removing the 2 screws from the bottom cover of your Fronius inverter.
Lift the lid of your Fronius inverter.
In order to fix the inverter, you have to drill a minimum of 3 holes in your middle. Use the inverter as a template. Check that the inverter is properly aligned.
With the Fronius inverter, you have received an AC connection box. This box is used to connect the AC cable to your injection site.
If you are in three phase, so you must connect L1, L2, L3, N. If you are in single phase, you not have to connect the terminal block L3.
Prepare the connection of your solar panels. Connected in series and / or parallel thereof to obtain the voltage and operating current of the inverter FRONIUS.
In the Fronius inverter, you will find the PV terminals and - for connecting solar panels. Each string must be connected to this location.
Congratulations, you have connected your Fronius inverter. Close the front casing and turn the knob to position I. You only have to select your language and the inverter paramatrer alone.
