DM-4.6-TL-PLUS-B-Q
Easy installation
Light
WIFI connection
2 independent trackers
Single-phase inverter

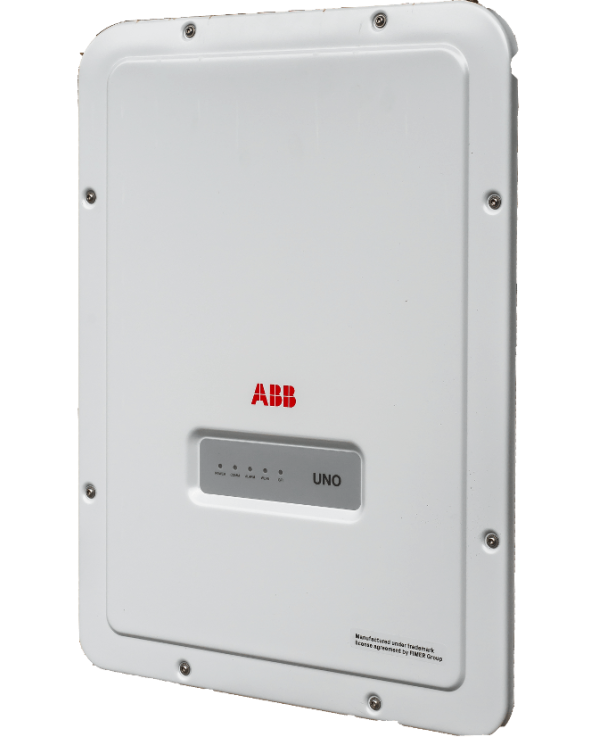

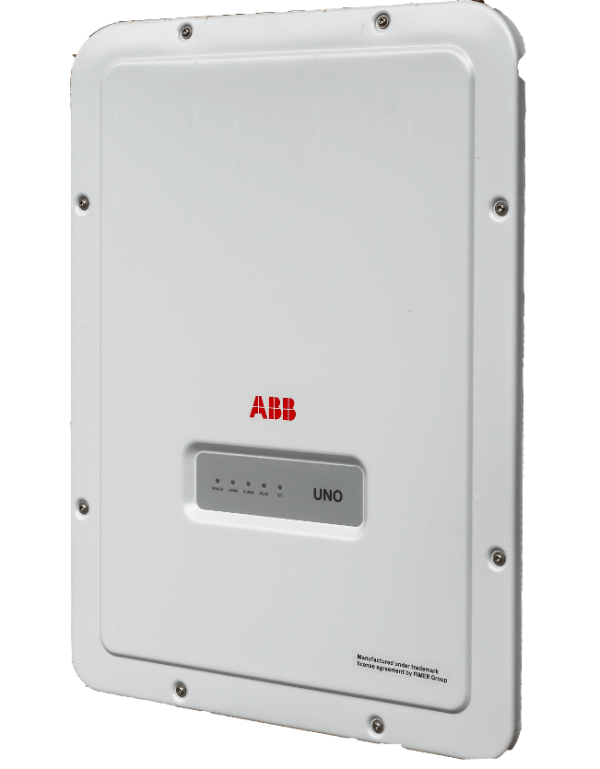

Buy your ABB/FIRMER inverter UNO-DM-4.6-TL PLUS-B-Q at the best price - online only. This residential single-phase inverter is ideal for medium sized installations up to 4.6 kW. It does not have a transformer and provides maximum efficiency (up to 96.8%) for record performance. This ABB inverter is equipped with 2 MPPT trackers in a single-phase injection. You have the possibility to install your solar panels on two different roofs.
Easy installation: The installation of ABB inverter UNO-DM-4.6-TL PLUS-B-Q is now easier and faster. It hangs higher and the cables can be connected without the use of tools. You will receive a full installation kit with all the accessories, wall hanging, AC and MC4 connectors, screws and bolts, allowing you to set it up quickly.
Light: The ABB/FIRMER inverter UNO-DM-4.6-TL PLUS-B-Q has no transformer but uses a different technology to convert energy. This means it is very light and easy to carry. Moreover, the new ABB makes use of an efficient cooling system without a fan: it runs extremely quietly.
WIFI connection: This inverter comes with an integrated WiFi Internet connection. Connect it to Internet and benefit from free online supervision. Connect your mobile directly to AURORA VISION.
2 independent trackers: The ABB inverter has 2 independent inlets allowing your photovoltaic panels to be installed in two different locations (eg. facing east and west on the roof). The ABB inverter guarantees the best production possible for each input.
Single-phase inverter: The ABB/FIRMER inverter UNO-DM-4.6-TL PLUS-B-Q is a single phased inverter.
| MPPT range : | 100..530V |
| Start voltage: | 120V |
| Max. input current : | 12.5A |
| Length x Height x Depth: | 553 x 418 x 175mm |
| MPPT Tracker: | 2 |
| Injection: | Monophase |
| Max. input solar panel power: | 5200W |
| Internet connection: | Ethernet / Wifi |
| Inverter brand: | ABB |
| Product warranty: | 5 years |
| Place of manufacture: | Europe |
| Inverter type: | Grid inverter |
With this card, the ABB inverter will automatically adapt the output power in order to maximise self-consumption or in order to avoid feeding power into the grid according to the system settings. In addition, this UNO-DM-COM KIT is equipped with a configurable switching relay which can be used for manage external loads with custumizable activation power...
Measure the consumption of your home and the power injected into the power grid. This meter is connected to AURORA VISION. This meter is also connected to your inverter. It allows you to readjust the power of your solar panels so as not to inject the overproduction into the power grid.
