X1-MICRO-1200
Low price
WIFI connection (included)
Lightweight
Quick start
Single-phased inverter

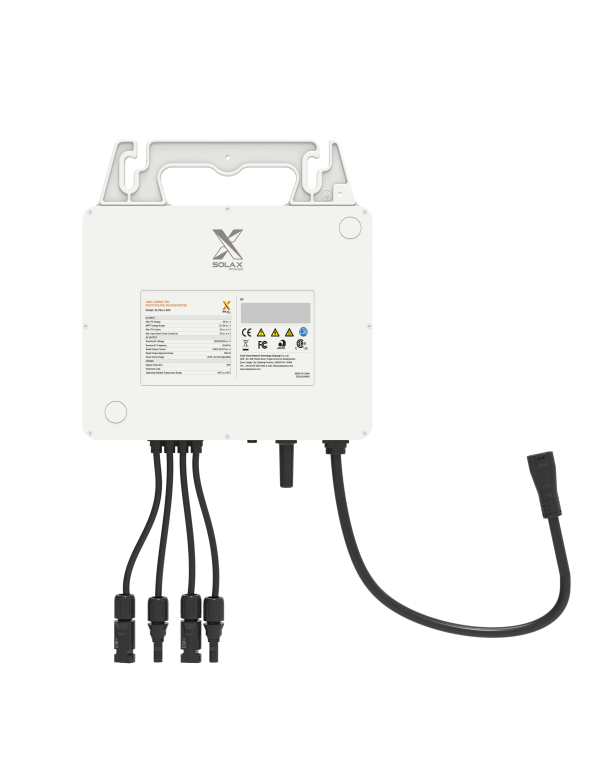

Low price: The advantage of the SOLAX X1 microinverter is that it's a very competitive and therefore inexpensive solution, because you don't need solar cables, MC4 connectors and a protective box, because you connect the solar panels directly to the SOLAX X1 microinverter. What's more, you can connect 2 solar panels, reducing the number of microinverters required.
WIFI connection (included): The SOLAX X1 microinverters have built-in Internet connectivity, so you can get all the performance data from your installation for free on your application. What's more, these microinverters are compatible with the ALMA SOLAR application, which lets you control the power of your solar panels via home automation.
Lightweight: SOLAX microinverters are quick and easy to install. This optimizes installation time for installers. What's more, the ease with which microinverters can be installed makes them accessible to homeowners who want to do the installation themselves. You connect the SOLAX X1 microinverters to the solar panels. The AC (alternating current) cable is connected to the so-called trunk cable. All microinverters are connected to this trunk cable. You then extend this cable with a standard AC cable to your home's electrical panel. There's nothing more to do.
Quick start-up: One of the great advantages of the SOLAX X1 microinverter is that the first glimmer of sunlight activates its operation. This means you're generating as soon as the sun rises, and gaining precious watts as the day progresses. This microinverter starts up almost instantaneously.
Single-phase inverter: This microinverter operates in single-phase. You can connect it to a three-phase network. To do so, you'll need to create groups of microinverters, which you'll connect to each phase. Try to be as balanced as possible between each phase.
| MPPT range : | 22-60V |
| Start voltage: | 22V |
| Max. input current : | 2x20A |
| Weight: | 4,1kg |
| Length x Height x Depth: | 260x212x40mm |
| Max. efficiency: | 96,5% |
| MPPT Tracker: | 2 |
| Injection: | Monophase |
| Power: | 1200W |
| Max. input solar panel power: | 1340W |
| Inverter brand: | SOLAX POWER |
| Place of manufacture: | Asia |
| Inverter type: | Micro-inverter |
Ensures safety and weatherproofing by sealing the end of AC trunk cables in SolaX X1 Micro-Inverter systems, protecting against environmental elements.
Use this connector from TRONC for SOLAX X1 microinverters to connect AC cables and microinverters. You have one side with a male end and the other female end. The 3rd is the end piece for connecting the SOLAX microinverter connector.
Order the AC cable for SOLAX X1 microinverter with a length of 2.4m. Generally used for installations with solar panels in horizontal format. It connects to the SOLAX trunk connector and allows the connection of all microinverters.
Order the AC cable for SOLAX X1 microinverter with a length of 2.2m. Generally used for installations with solar panels in horizontal format. It connects to the SOLAX trunk connector and allows the connection of all microinverters.
Order the AC cable for SOLAX X1 microinverter with a length of 1.6m. Generally used for installations with solar panels in vertical format. It connects to the SOLAX trunk connector and allows the connection of all microinverters.
Male AC plugs designed for secure and efficient connection within SolaX X1 Micro-Inverter systems, ensuring reliable power transmission.
Female AC plugs designed for secure and efficient connection within SolaX X1 Micro-Inverter systems, ensuring reliable power transmission.
