Meter DTSU666x3 230V/400V for solar inverter
Connects directly to the solar inverter to monitor your home consumption and regulate the solar panels' power. Measures up to 100 A/phase.
Help
+352 20 331 661

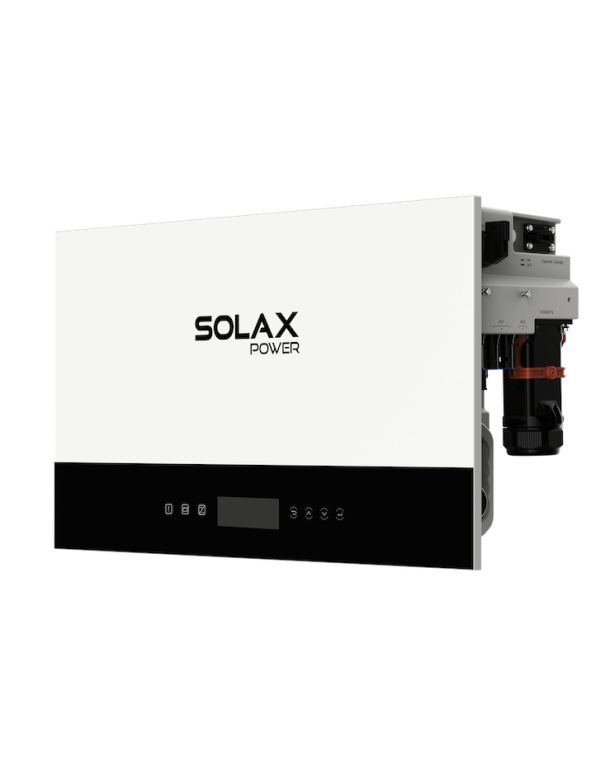

X1-IES-3K
Quick start
WIFI internet monitoring
Integrated battery management high voltage
Operate without a power network
Single phase inverter
Management Excess solar power into the grid
Shadow fix integrated
Please note that you must also order the batteries. This is only the inverter of the IES system.

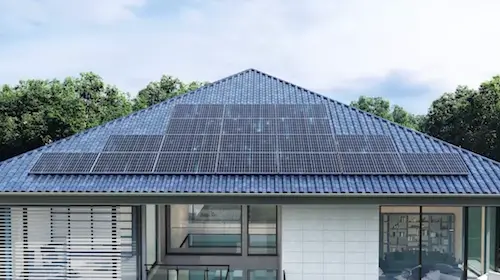

High Yield & Full Utilization:
The system allows for maximum 200% PV oversizing, ensuring efficient utilization of available solar energy. It supports up to 200% PV input and a maximum of 20A DC input per MPPT, optimizing energy capture even in low light conditions due to its low startup voltage.
Money Saving:
With 7X24 Time of Use (ToU) capability, the system intelligently manages energy consumption, resulting in cost savings on electricity bills.
AI Driven Energy Management:
Utilizing smart schedule, intelligent loads management, and smart scene features, the system optimizes energy usage based on demand patterns, further enhancing efficiency.
High Reliability:
Optional features such as AFCI and rapid shutdown, along with Type II SPD on AC&DC side and cobalt-free LiFePO4 Batteries, ensure a reliable and safe energy storage solution.
Fast Installation 0.5 hr:
Its modular design, plug & play functionality, and optional wireless meter facilitate quick and easy installation within 0.5 hours.
Robust Backup:
The system boasts less than 10ms switchover time, supports 200% EPS overload for 10 seconds, and offers a maximum 50A charging/discharging rate, ensuring uninterrupted power supply during outages.
Why X1-IES:
X1-IES is a modularly designed energy storage system integrating a 3~8kW hybrid inverter, BMS, and extensible battery modules, ranging from 5kWh to 20kWh. Tailored for residential and small commercial and industrial applications, it ensures safety, powerful performance, and intelligence, aiming to provide reliability, ease of use, and savings on energy bills.
Compatible with ALMA SOLAR app | Yes |
MPPT Tracker: | 2 |
Injection: | Monophase |
Battery Type: | Lithium |
Internet connection: | Ethernet / Wifi |
Inverter brand: | SOLAX POWER |
Product warranty: | 10 years |
Place of manufacture: | Asia |
Inverter type: | Hybrid inverter |
Marque batterie: | TRIPLE POWER |

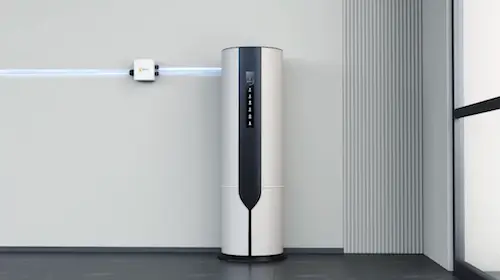

The SolaX adapter box is combined with a heat pump with dry contact function.As long as your appliance has a dry contactor, this box allows your appliance to be connected to the photovoltaic inverter. The inverter controls the box to activate your heater according to your settings (available panel power, battery status, time, etc.). Typically customers...
Wifi communication card to connect your SOLAX inverter and monitor its performance remotely.
Connects in parallel to your electrical circuit and connects directly to your Solax solar inverter to monitor your home consumption and regulate the power of your solar panels. Measures between 5A and 200A per phase for 24mm diameter cables.
High voltage Lithium Iron Phosphate Battery100% discharge6.000 cycles or moreLightweight design5,1 kWh - 30,7kWh Storage Capacity
Battery management system for the Solax IES series. X1 or X3. The article is only required once per inverter purchased and is compatible with 1 - 6 batteries.From 4 batteries, you also need the "Series Box" with an additional floor bracket and the connection box for two battery columns.
