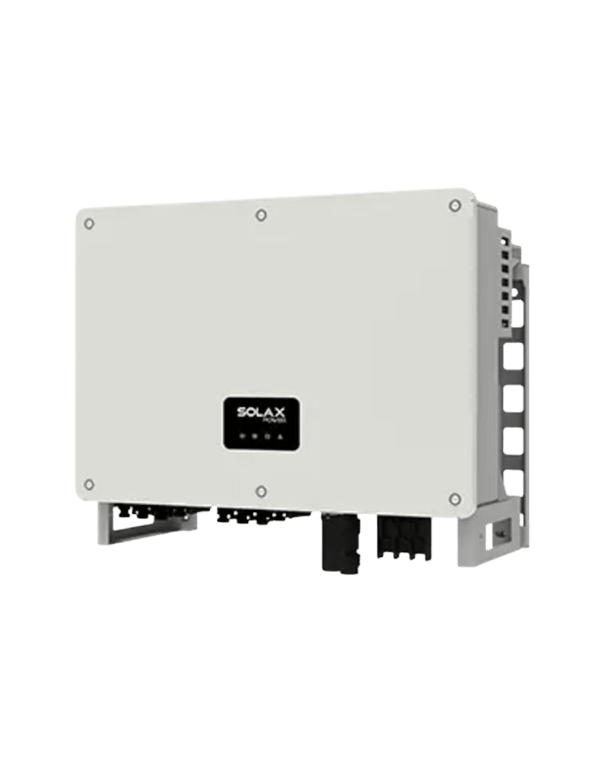

SolaX inverter X3 MEGA 60K G2 without display
X3-MGA-60K-G2-NODP
Max. efficiency 98.4%
180~1000Vdc MPPT voltage range
Max. 6 MPPTs, 2 strings per MPP tracker
150% PV oversizing input, 110% overloading output
Max. 32A MPPT current
Inverter is not equipped with a Display.
€2,729.00 VAT incl.
Experience the extraordinary power of the X3 MEGA G2 solar inverter, delivering up to 98.4% efficiency and outstanding energy performance with its wide MPPT voltage range, which enhances power yield. Rest assured with IP66, Arc-fault circuit interrupter, and SPD protection, ensuring your system's safety and security. Unlock the full potential with intelligent features like built-in export power control, remote maintenance, and smart I-V curve diagnostics. Moreover, the X3 MEGA G2 utilizes advanced heat dissipation technology, not only empowering it with immense power but also making it remarkably lighter and more compact compared to inverters of similar capacity. Elevate your energy system to new heights with the X3 MEGA G2, guaranteeing unparalleled performance and efficiency.
The X3 MEGA G2 offers more energy harvest with a wide MPPT voltage range of 180~1000Vdc, allowing for maximum utilization of solar energy. It features up to 6 MPPTs, with 2 strings per MPP tracker, enabling efficient energy conversion even in diverse conditions. Additionally, it allows for 150% PV oversizing input and 110% overloading output, maximizing energy production while ensuring system reliability.
For safety and reliability, the X3 MEGA G2 is equipped with IP66 protection, safeguarding it against harsh environmental conditions. Optional AFCI protection further enhances safety, while both AC and DC SPDs (Type II) inside, with Type I+II SPD as an option, provide comprehensive surge protection.
Smart maintenance and cost efficiency are key features of the X3 MEGA G2. It comes with built-in export power control, allowing users to manage power output according to their needs. Remote setting and upgrading enable convenient system management, while smart I-V Curve Diagnosis ensures optimal performance. The inclusion of aluminum AC cable connection and fuse-free design with smart string current monitoring further enhances convenience and reliability.
Moreover, the X3 MEGA G2 features night-time Reactive Power Compensation and 24-hour operation monitoring as optional functionalities, ensuring continuous operation and optimal performance. Smart air cooling extends fan lifetime, while advanced heat dissipation technology makes the system over 10% lighter and smaller compared to conventional inverters of similar capacity, saving space and installation costs.
Data sheet
MPPT range : | 180-1000V |
---|---|
Start voltage: | 200V |
Max. input current : | 6x32A |
Weight: | 45,5kg |
Length x Height x Depth: | 630x521x286mm |
Max. efficiency: | 98,4% |
MPPT Tracker: | 6 |
Injection: | Triphase |
Power: | 66kVA |
Inverter brand: | SOLAX POWER |
Place of manufacture: | Asia |
Inverter type: | Grid inverter |
Shipping Label | Colie |
