Meter DTSU666x3 230V/400V for solar inverter
Connects directly to the solar inverter to monitor your home consumption and regulate the solar panels' power. Measures up to 100 A/phase.
Help
+352 20 331 661
X1-HYBRID-3.0-D G4
Quick start
WIFI internet monitoring
Integrated battery management high voltage
Operate without a power network
Single phase inverter
Management Excess solar power into the grid
Shadow fix integrated

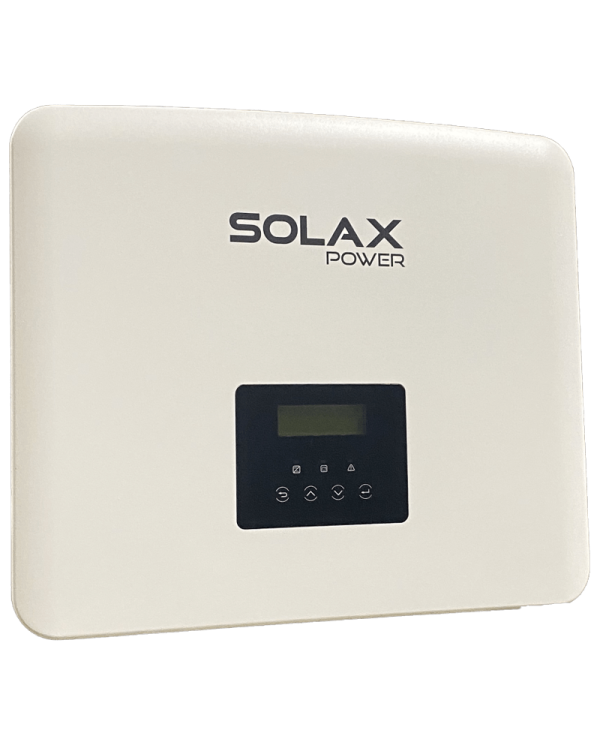

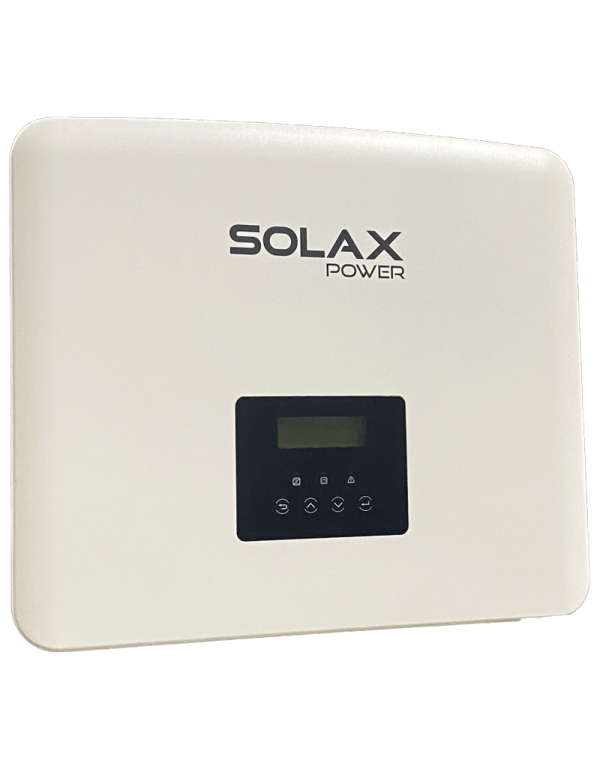

Buy SolaX Power Hybrid X1-3.0-D G4 inverter at the best prices online. The inverter determines the most economic source of electricity for you, between photovoltaic, batteries and the electricity network. It regulates battery charging to maximise their lifespan. The SolaX Power inverter sends your data free over the internet via Wifi. You can analyse it's performance online. If you are absent, it detects and automatically recharges your batteries. In the evening, you use this free energy. If you are afraid of not having enough power, the inverter is capable of taking electricity from the network, without limiting the power. If you have power outages, it is also capable of modulate itself to continue with your supply. You can produce unlimited electricityt.
Quick start: the attraction of the Solax Hybrid X1-3.0-D G4 inverter is its low voltage start up. As soon as the voltage starts, your inverter will transform energy to generate electricity. Performance gain on your photovoltaic installation.
WIFI Internet monitoring: you are not at home and you want to check that your solar panels are working properly, it's very easy with Wifi internet monitoring included in the Solax Hybrid X1-3.0T. Data is sent free on Solax servers. With the Smartphone App, you can see the real-time performance of your installation. The ideal solution for assessing the effeciency of solar panels and batteries.
Integrated battery management high voltage: Solax X1-3.0-D G4 is the first inverter to intelligently manage the charging and discharging of your batteries at 480V. You have the ability to define the recharging source for your battery (e.g. uniquely with solar panels or exclusively from the electricity network). You can also define a recharge time for the batteries (off-peak hours, for example). By default, the Solax inverter prioritises electricity sources in the following order:1 = solar panels, 2 = solar batteries, 3 = networks. This priority can be changed in the settings for the inverter.
Operate without a power network: the Solax Hybrid is an intelligent inverter capable of operating without an electrical network with its EPS output. It runs between two sources of electricity: solar panels and solar batteries. Your garden chalet will always have a source of electricity.
Single phase inverter: connect your Solax Hybrid inverter on your house to a single phase network. If you wish to work on a three phase, it's very easy: you order 3 inverters to insert in each phase. Alternatively, in homes with three phases, you can connect and stay with the Solax Hybrid single phase (connection on 1 phase).
None injection solar excess: The Solax X1-3.0-D G4 is a smart inverter that regulate your solar panels voltage to your strictly need. Eg, you have a need of 2000W, your solar panels produce 3500W. The inverter will regulate the voltage to have exactly 2000W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess without contract.
Integrated Shadow Fix: The Shadow Fix allows you to manage the shading on your solar panels. You have 3 management thresholds: LOW, MEDUIM and HIGH. The threshold is defined according to the % of solar panel in the shade. This ensures the best solar production of your solar panels with some shaded panels.
If you connect a single-phase inverter to a three-phase network, you need a three-phase smart meter.
Compatible with ALMA SOLAR app | Yes |
MPPT Tracker: | 2 |
Injection: | Monophase |
Battery Type: | Lithium |
Internet connection: | Ethernet / Wifi |
Inverter brand: | SOLAX POWER |
Product warranty: | 10 years |
Place of manufacture: | Asia |
Inverter type: | Hybrid inverter |
Marque batterie: | TRIPLE POWER |
High voltage Lithium Iron Phosphate Battery100% discharge6.000 cycles or moreLightweight design6.000 Wh Storage Capacity6.100 W Output Power
The SolaX adapter box is combined with a heat pump with dry contact function.As long as your appliance has a dry contactor, this box allows your appliance to be connected to the photovoltaic inverter. The inverter controls the box to activate your heater according to your settings (available panel power, battery status, time, etc.). Typically customers...
Wifi communication card to connect your SOLAX inverter and monitor its performance remotely.
Connects in parallel to your electrical circuit and connects directly to your Solax solar inverter to monitor your home consumption and regulate the power of your solar panels. Measures between 5A and 200A per phase for 24mm diameter cables.
Bulb connected via the ALMA SOLAR application Standard E27 socket Power of 9W with possibility of choosing warm/cold white/colors Brightness management Wifi connection Monitoring your own consumption
Control your consumables remotely via the ALMA SOLAR application Automatic color change depending on consumption Monitoring of socket consumption up to 12A Scenario activation based on the states of connected devices, solar production, solar battery status, weather, time, location, brightness* (*depends on a device with sensor)
